About This Item:
|
Technical items |
Description of GPON ONT |
|
|

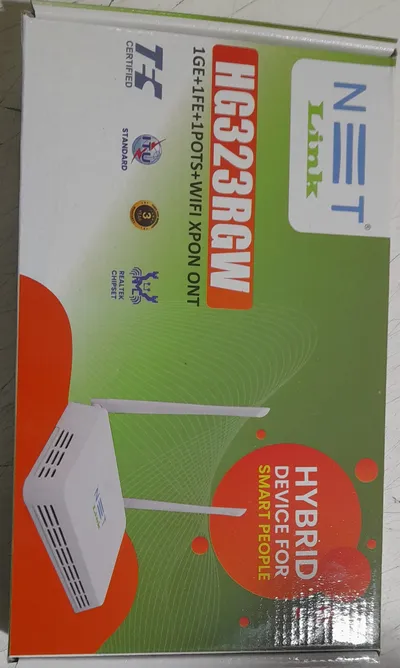

Netlink HG323RGW GPON ONT |
||
| Main Chipset | Realtek | |
| CPU | 600MHZ | |
| Memory | 64M bytes DDR3 | |
| Flash | 16M SPI | |
| PON Port Type | BOSA | |
| PON interface | 1 GPON interface, SC single-mode/single-fiber,Upstream 1.25Gbps,Downstream 2.5Gbps | |
| Wavelength | GPON Tx 1310nm, GPON Rx 1490nm | |
| Sensitivity | <-27dBm(PX20+) | |
| Overload | >-8dBm(PX20+) | |
| Optical interface | SC/PC connector | |
| LAN interface | 1 x 10/100/1000Mbps+1 x 10/100 auto adaptive Ethernet interfaces, RJ45 connectors | |
| Downstream POTS interface | 1 FXS, RJ11 connectors | |
| Indicators | 7 indicators, for status of power supply, PON, LAN and POTS . | |
| WLAN | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R two internal antenna |
|
| WLAN throughput | 100Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption |
|
| DC power supply | +12V,1A, external AC-DC power adaptor | |
| Power consumption | ≤9W | |
| Operating condition | Temp: -5 +55 Humidity:10 90%(non-condensed) |
|
| Storing condition | Temp: -30 +60 Humidity:10 – 90%(non-condensed) |
|
| Dimension | 185mm*33mm*122mm W*H*D | |
| Net weight | 280gm | |
