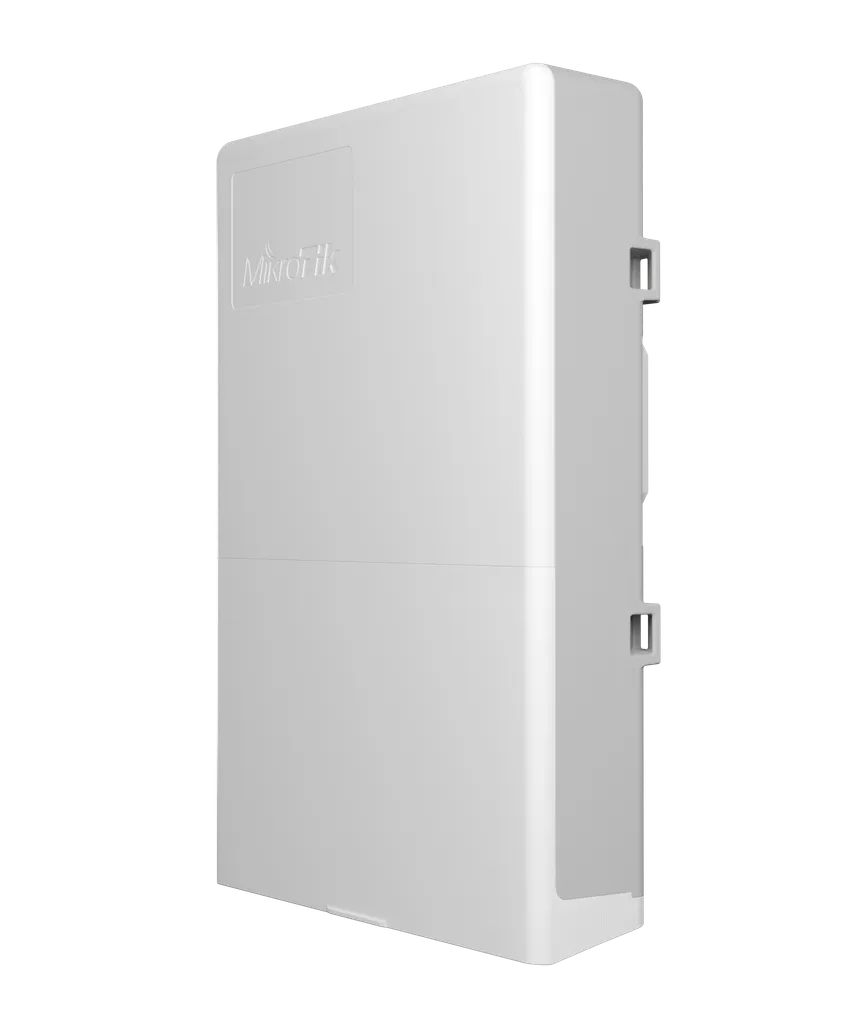

Mikrotik CSS610-1Gi-7R-2S+OUT netPower Lite 7R An outdoor reverse PoE switch with Gigabit Ethernet and 10G SFP+ ports.
₹11,95000
₹
13,500.00
11
Availability:
Available on Request
Check delivery options
Secure
Payment
Genuine
Products
Cash On
Delivery
Gazillio
Fulfilled
Top
Brand
Free
Delivery
GST
Invoice
About the product:
About This Item:
- With netPower Lite 7R switch you can forget about expensive GPON base stations and optical splitters. This switch is a part of our GPEN concept – aimed to bring the speed and versatility of fiber networking while using the advantages of Ethernet. It is an easy to deploy, low-cost way for any ISP to deliver the Internet to individual apartments.
- With this switch you won’t have to worry about power issues, as there are many options. netPower Lite 7R has 7 reverse PoE ports. Depending on your setup, netPower can draw the necessary power even from a single client! Ethernet port 8 can power other PoE capable devices with the same voltage as applied to the unit. There is also a DC jack and a 2-pin terminal for alternative powering.
- The outdoor enclosure allows you to install this switch in all kinds of environments – from damp attics to elevator shafts and different poles with hose clamps. netPower Lite 7R has a non-blocking throughput of 28 Gbps, switching capacity of 56 Gbps and forwarding rate of 41.7 Mpps.
Specifications
| Details | |
|---|---|
| Product code | CSS610-1Gi-7R-2S+OUT |
| Dimensions | 304 x 212 x 71 mm |
| Operating System | SwitchOS Lite |
| Storage size | 64 KB |
| Storage type | FLASH |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
Powering
| Details | |
|---|---|
| Number of DC inputs | 3 (DC jack, 2-pin terminal, PoE-IN) |
| DC jack input Voltage | 12-57 V |
| 2-pin terminal input Voltage | 12-57 V |
| Max power consumption | 29 W |
| Max power consumption without attachments | 7 W |
| FAN count | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 12-57 V |
PoE-out
| Details | |
|---|---|
| PoE-out ports | Ether8 |
| PoE out | Passive PoE |
| Max out per port output (input 18-30 V) | 600 mA |
| Max out per port output (input 30-57 V) | 450 mA |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
| Number of 1G Ethernet ports with Reverse PoE (PoE-in) | 7 |
| Number of 1G Ethernet ports with PoE-out | 1 |
Fiber
| Details | |
|---|---|
| SFP+ ports | 2 |
Customers usually keep this item
This product has fewer returns than average
compared to similar products.
Ratings:
Top Brand
Mikrotik
- 91% positive ratings from 1K+ customers
- 100+ recent orders from this brand
- 4+ years on Gazillio
Description
If you are looking to buy the best outdoor networking equipment at an incredible price, the Mikrotik CSS610-1Gi-7R-2S+OUT netPower Lite 7R offers unmatched value for internet service providers. This outdoor reverse PoE switch features Gigabit Ethernet and 10G SFP+ ports, bringing the speed and versatility of fiber networking to your clients by utilizing the advantages of standard Ethernet. Designed as a part of the innovative GPEN concept, this switch allows you to forget about expensive GPON base stations and optical splitters. It provides an easy-to-deploy, low-cost way to deliver high-speed internet directly to individual apartments.
You will never have to worry about power issues or harsh environments with this robust device. The durable outdoor enclosure allows you to install the switch in various locations, including damp attics, elevator shafts, or mounted on different poles with standard hose clamps. It features seven reverse PoE ports, meaning the switch can draw the necessary power even from a single client. For added flexibility, Ethernet port 8 can power other PoE-capable devices with the same voltage applied to the unit, and you can use the DC jack or 2-pin terminal for alternative powering. Experience top-tier network performance with a non-blocking throughput of 28 Gbps, a switching capacity of 56 Gbps, and a forwarding rate of 41.7 Mpps.
• 8 x 10/100/1000 Gigabit Ethernet ports (7 with Reverse PoE-in, 1 with PoE-out) and 2 x 10G SFP+ ports
• Multiple power options including Passive PoE-in, DC jack, and 2-pin terminal supporting 12-57 V input
• Weather-resistant outdoor enclosure tested for extreme ambient temperatures ranging from -40°C to 70°C
• Exceptional performance with 28 Gbps non-blocking throughput and 56 Gbps switching capacity
• Energy-efficient passive cooling, 7 W power consumption without attachments, and SwitchOS Lite
Do not miss out on this incredible deal; buy the Mikrotik netPower Lite 7R today for the best price and give your ISP network the ultimate performance and value.
You will never have to worry about power issues or harsh environments with this robust device. The durable outdoor enclosure allows you to install the switch in various locations, including damp attics, elevator shafts, or mounted on different poles with standard hose clamps. It features seven reverse PoE ports, meaning the switch can draw the necessary power even from a single client. For added flexibility, Ethernet port 8 can power other PoE-capable devices with the same voltage applied to the unit, and you can use the DC jack or 2-pin terminal for alternative powering. Experience top-tier network performance with a non-blocking throughput of 28 Gbps, a switching capacity of 56 Gbps, and a forwarding rate of 41.7 Mpps.
• 8 x 10/100/1000 Gigabit Ethernet ports (7 with Reverse PoE-in, 1 with PoE-out) and 2 x 10G SFP+ ports
• Multiple power options including Passive PoE-in, DC jack, and 2-pin terminal supporting 12-57 V input
• Weather-resistant outdoor enclosure tested for extreme ambient temperatures ranging from -40°C to 70°C
• Exceptional performance with 28 Gbps non-blocking throughput and 56 Gbps switching capacity
• Energy-efficient passive cooling, 7 W power consumption without attachments, and SwitchOS Lite
Do not miss out on this incredible deal; buy the Mikrotik netPower Lite 7R today for the best price and give your ISP network the ultimate performance and value.
Mikrotik CSS610-1Gi-7R-2S+OUT netPower Lite 7R An outdo - is one of the top products in this category. It has high ratings from customers who purchased it. It is a long lasting product that comes with brand warranty. It is a high performance product having higher number of satisfied customers. This brand is also a leading brand in this category.
Gazillio.com is a trustworthy e-commerce website for online shopping. We provide you cheap and best online shopping experience by delivering only authentic products from brand owners, brand manufacturers and brand authorised distributors to make sure that you get the original product.
Frequently Asked Questions
It is an outdoor reverse PoE switch designed as part of the GPEN concept to help ISPs deliver internet to individual apartments using the versatility of Ethernet without needing expensive GPON base stations and optical splitters.
It has 3 DC inputs: a DC jack, a 2-pin terminal, and Passive PoE-IN. It features 7 reverse PoE ports that can draw the necessary power even from a single client, and it supports an input voltage range of 12-57 V.
Yes, Ethernet port 8 (Ether8) features Passive PoE-out and can power other PoE capable devices with the same voltage as applied to the unit.
The switch provides a non-blocking throughput of 28 Gbps, a switching capacity of 56 Gbps, and a forwarding rate of 41.7 Mpps.
The outdoor enclosure is highly versatile and can be installed in damp attics, elevator shafts, or on different poles with hose clamps. It has been tested for extreme ambient temperatures ranging from -40°C to 70°C.
